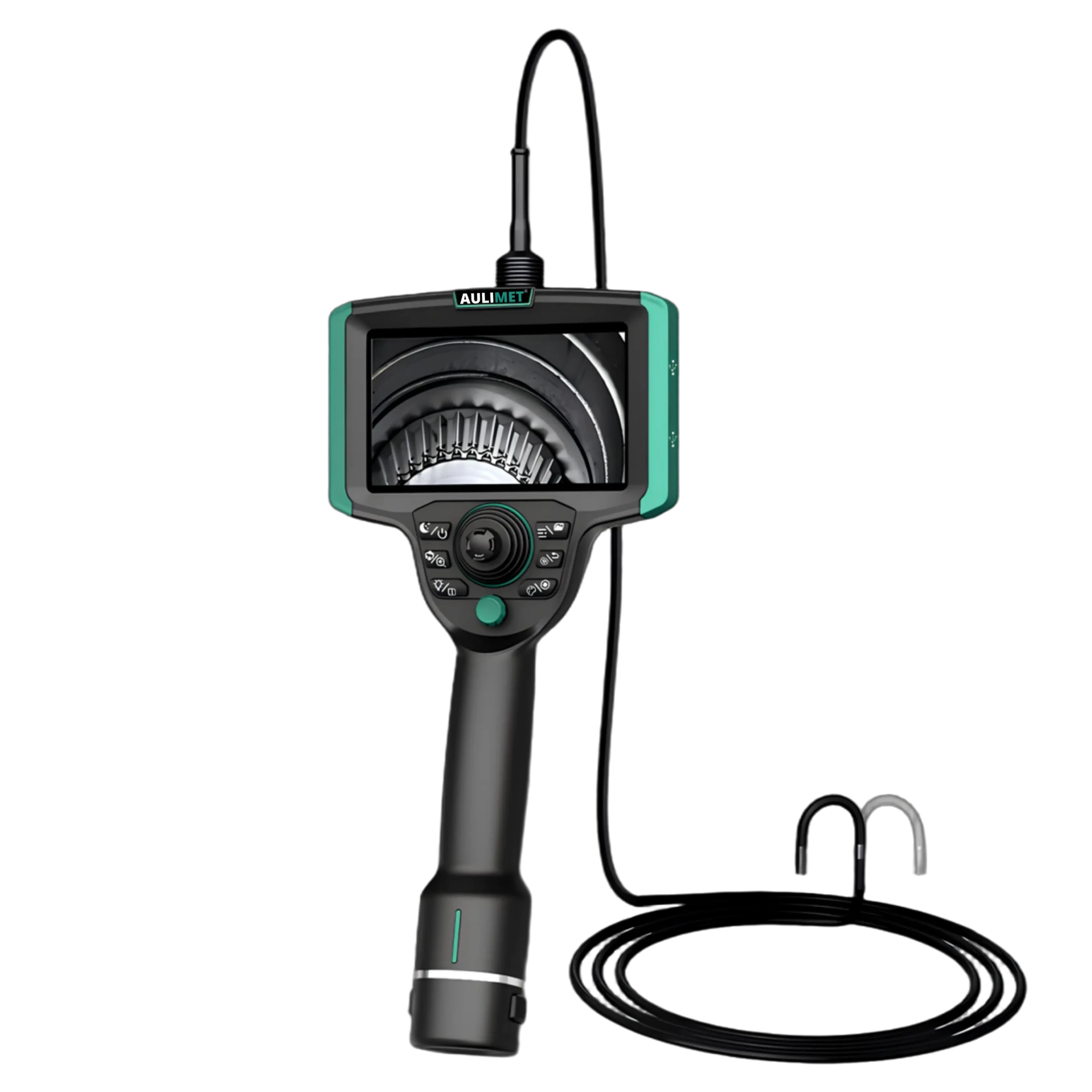

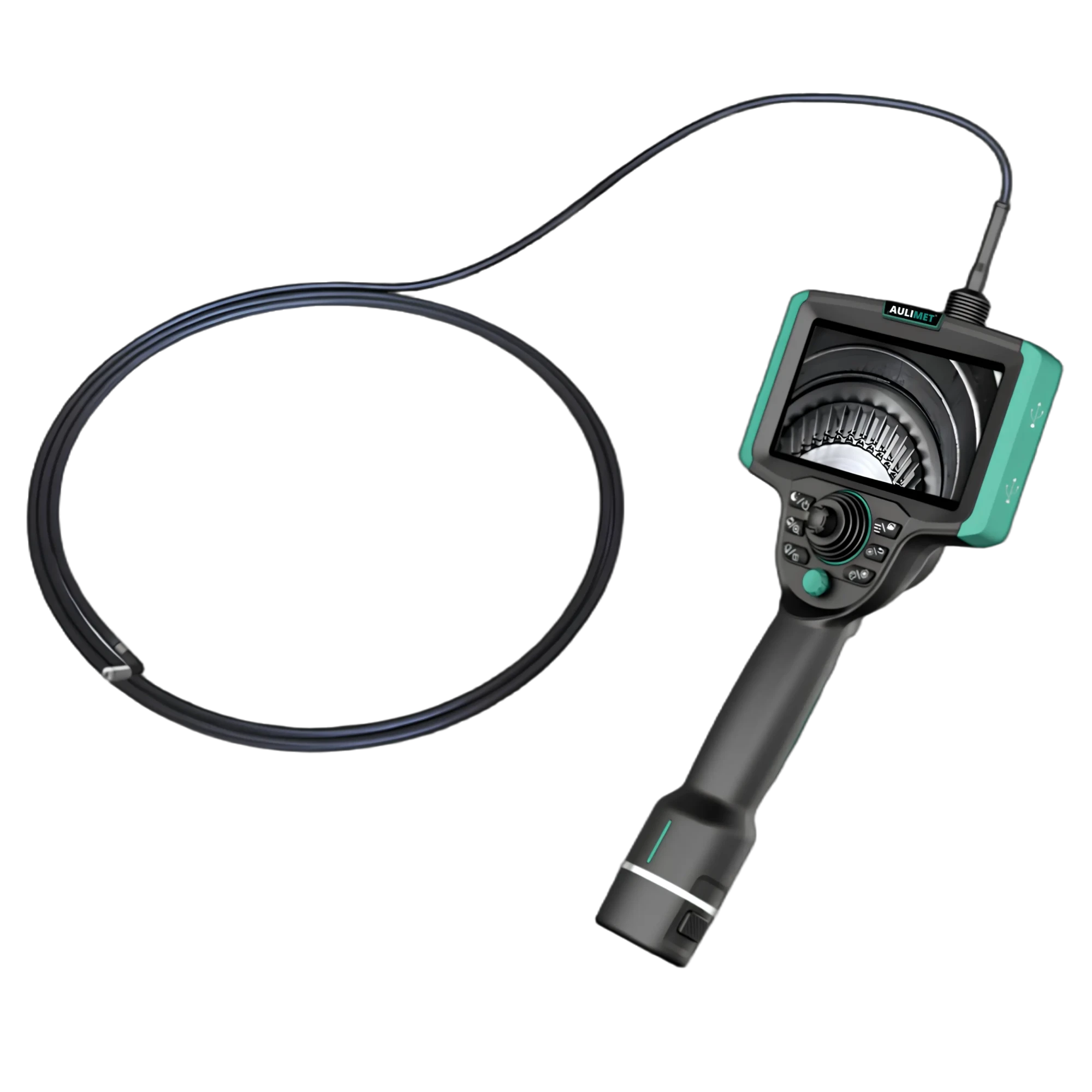

Mechanical Industrial Videoscope MV-4 Series
The AULIMET Mechanical Industrial Videoscope MV-4 Series is a high-performance industrial inspection camera designed for fast and accurate visual inspection. It features a 5.5-inch high-brightness OLED touchscreen for clear image viewing in all working conditions. Powered by the advanced RK3588 processor, it delivers smooth performance and intelligent image processing. Multiple built-in image enhancement modes improve defect detection. The dual joystick control provides precise probe operation for easy inspection in hard-to-reach areas. Ideal for industrial maintenance, quality control, aerospace, automotive, power plants, and manufacturing applications.
Product Overview
The AULIMET Mechanical Industrial Videoscope MV-4 Series is a professional industrial videoscope, video borescope, and industrial inspection camera designed for accurate non-destructive visual inspection in demanding industrial environments. It enables engineers and maintenance professionals to inspect internal components without dismantling equipment, reducing downtime and maintenance costs.
Powered by the advanced RK3588 Octa-Core Processor, the MV-4 Series delivers fast image processing, smooth operation, and crystal-clear inspection results. The 5.5-inch Full HD OLED touchscreen provides exceptional brightness, vivid colors, and excellent visibility even under direct sunlight.
The videoscope features a 360° mechanical articulation system with a dual-joystick design, allowing precise control of the insertion tube for inspecting hard-to-reach areas. Whether inspecting pipelines, turbines, engines, welds, or machinery, the MV-4 Series provides superior image quality and reliable performance for professional inspection applications.
Smart Inspection Functions
The MV-4 Series includes several intelligent features to improve inspection efficiency:
- Photo and HD video recording
- Real-time video annotation
- Text comments during inspection
- Inspection tags for quick defect identification
- Automatic Black Box recording
- Intelligent document management
- One-click PDF report generation
- Digital zoom
- Image freeze
- Image rotation
- Picture-in-Picture display
- Side-by-side dual viewing
- USB software upgrade support
These intelligent functions simplify documentation and make inspection reporting faster and more professional. The AULIMET MV-4 Series is engineered for continuous operation in demanding industrial environments. Its durable tungsten-braided insertion tube provides excellent flexibility and wear resistance, while the IP67-rated probe withstands challenging inspection conditions. The long-lasting rechargeable battery provides more than four hours of continuous operation per battery pack, making it ideal for field inspections.
Key Features
Intelligent RK3588 Processing Platform
The powerful RK3588 processor with advanced CPU architecture delivers high-speed image processing, smooth system performance, and rapid response during inspections.
5.5-inch Industrial OLED Touchscreen
The high-brightness Full HD OLED display offers outstanding image clarity, wide viewing angles, and accurate color reproduction for easier defect identification.
360° Mechanical Articulation
The precision mechanical joystick allows smooth 360-degree probe guidance with up to 180° bending, enabling inspection inside complex structures.
Quick Probe Replacement
Different insertion tubes can be replaced within seconds, allowing one videoscope to support multiple inspection applications.
High-Definition Imaging
Advanced digital image processing technology produces sharp, detailed inspection images for detecting cracks, corrosion, wear, and manufacturing defects.
IP67 Waterproof Probe
The rugged inspection probe is designed to operate reliably in harsh industrial environments, including dusty, wet, and oily conditions.
Multiple Image Enhancement Modes
Built-in image processing modes improve contrast, brightness, and color balance for enhanced defect visibility.
Industrial File Management
Store inspection images and videos with easy file organization, editing, copying, and report generation directly from the system.
Technical Specifications
System Specifications
| Parameter | Specification |
|---|---|
| Processor (CPU) | RK3588 High-Performance Octa-Core Processor |
| Display | 5.5-inch Industrial Full HD OLED Touchscreen |
| Screen Resolution | 1920 × 1080 pixels |
| Internal Storage | 128 GB |
| External Storage | 64 GB USB Flash Drive (Included) |
| Function Keys | User Functions, Measurement Functions, Digital Functions |
| Data Interfaces | USB Type-C, Dual USB Ports, Expansion/Upgrade Port, RJ-45 Ethernet Port (Optional) |
| Video Output | HDMI |
| Articulation Control | Mechanical Dual-Joystick, 360° Rotation |
| Battery | 7.4 V, 5000 mAh Rechargeable Lithium Battery |
| Operating Time | More than 4 Hours per Battery Pack (Standard: 2 Battery Packs) |
Software Specifications
| Parameter | Specification |
|---|---|
| Operating System | Intelligent Multi-Task Operating System with Menu-Driven Interface |
| File Management | Copy, Create, Delete, Rename, Edit, Export Images & Videos, Report Generation |
| Image Functions | Photo Capture, Video Recording, Brightness Adjustment, Image Modes, Color Settings, Image Flip, Freeze Frame, Digital Zoom, Intelligent File Management |
| Digital Zoom | 5-Level Digital Zoom |
| White Balance | Auto / Manual |
| Image Modes | Normal, Negative, Custom Color Modes |
| Languages | Multi-Language Support |
| Software Upgrade | Via USB Flash Drive |
| Picture-in-Picture (PiP) | Yes |
| Side-by-Side View | Simultaneous Front & Side View Display |
| Black Box Recording | Automatic Real-Time Recording with Adjustable Recording Duration |
| Recording Tags | Add Inspection Tags During Video Recording |
| Text Annotation | Add Notes and Comments During Inspection |
| Video Formats | AVI, MP4 |
| Image Formats | JPG, PNG, BMP |
| 3D Dimensional Measurement | Optional |
Insertion Tube Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 1.0 mm, 1.2 mm, 1.8 mm, 2.2 mm, 2.8 mm, 4.0 mm, 6.0 mm |
| Illumination | High-Brightness White LED or Fiber-Optic Lighting |
| Viewing Direction | Forward View, Side View, or Dual View (Forward + Side) |
| Insertion Tube Length | 1 m to 10 m |
| Insertion Tube Construction | Four-Layer Tungsten Braided Insertion Tube |
Operating Environment
| Parameter | Specification |
|---|---|
| Protection Class | Probe: IP67 |
| Relative Humidity | Up to 95% (Non-Condensing) |
| Host Operating Temperature | -10°C to +50°C |
| Probe Operating Temperature | -20°C to +80°C |
Applications
The AULIMET Mechanical Industrial Videoscope MV-4 Series is suitable for a wide range of industries, including:
- Power Plants
- Oil & Gas
- Steel Plants
- Aerospace
- Automotive
- Railway Maintenance
- Heavy Engineering
- Petrochemical Industries
- Manufacturing Plants
- Foundries
- Shipbuilding
- Pipeline Inspection
- Boiler Inspection
- Heat Exchanger Inspection
- Turbine Maintenance
- Quality Control
- Preventive Maintenance
- Non-Destructive Testing (NDT)
Delivery Scope
- AULIMET Mechanical Industrial Videoscope MV-4 Series Main Unit × 1
- Inspection Probe / Insertion Tube (As Selected) × 1
- Rechargeable Lithium Battery Pack (7.4 V, 5000 mAh) × 2
- Battery Charger / Power Adapter × 1
- 64 GB USB Flash Drive × 1
- USB Type-C Cable × 1
- HDMI Cable × 1
- Protective Carrying Case × 1
- User Manual × 1
- Warranty Card × 1
